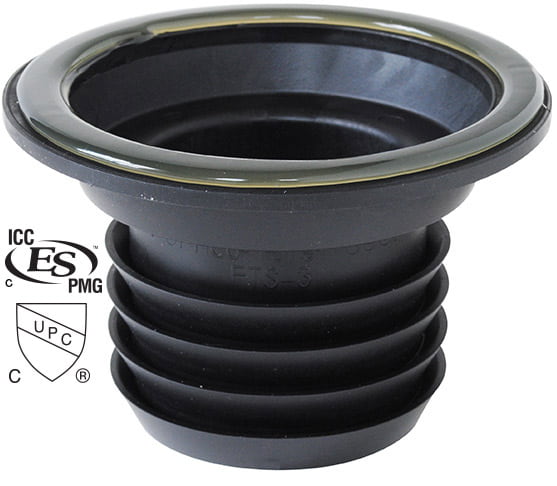

Wax Free Toilet Seal

Features

A strong and flexible to sustain a positive seal

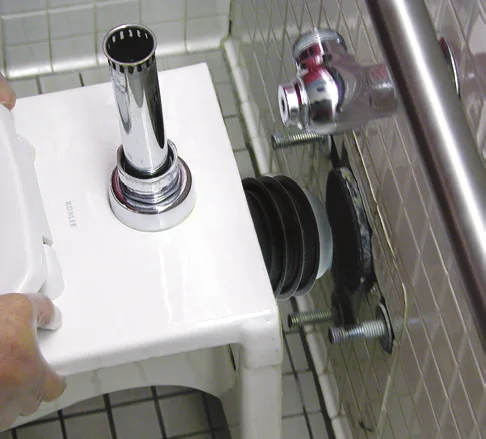

Ideal for wall carriers and floor mounts
Accommodates floors raised above the toilet flange by up to 3/4"
Maintains a gas tight seal even when minor movement occurs
Fast, easy installation for a long-term solution

Specifications

Conforms to ASTM A 1045
No need for flange risers or stacked wax rings
Ideal for in-floor radiant heat installations
Impervious to mold and mildew
Centers itself and the toilet to the drain
Toilet can be removed and re-installed with the same seal attached

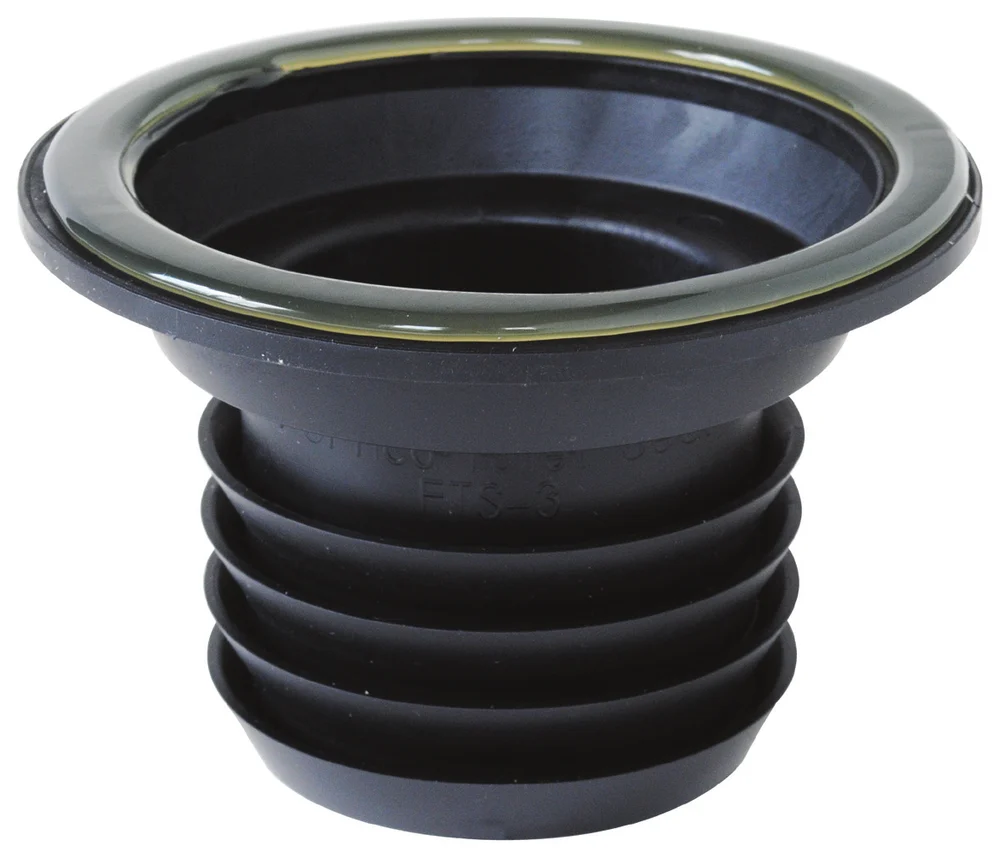

Made of flexible PVC

Models

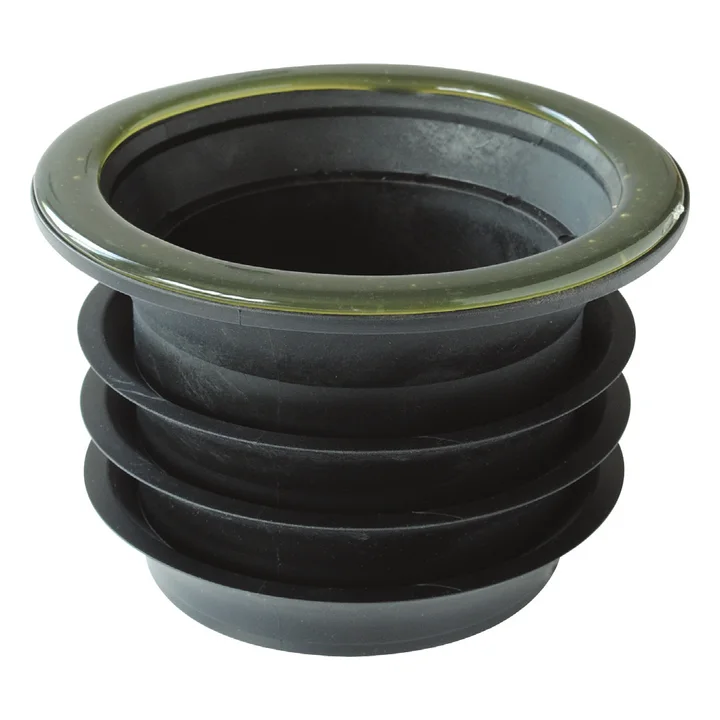

FTS-3 - Designed to seal the toilet to a 3" toilet flange installed on 3" drain pipe.

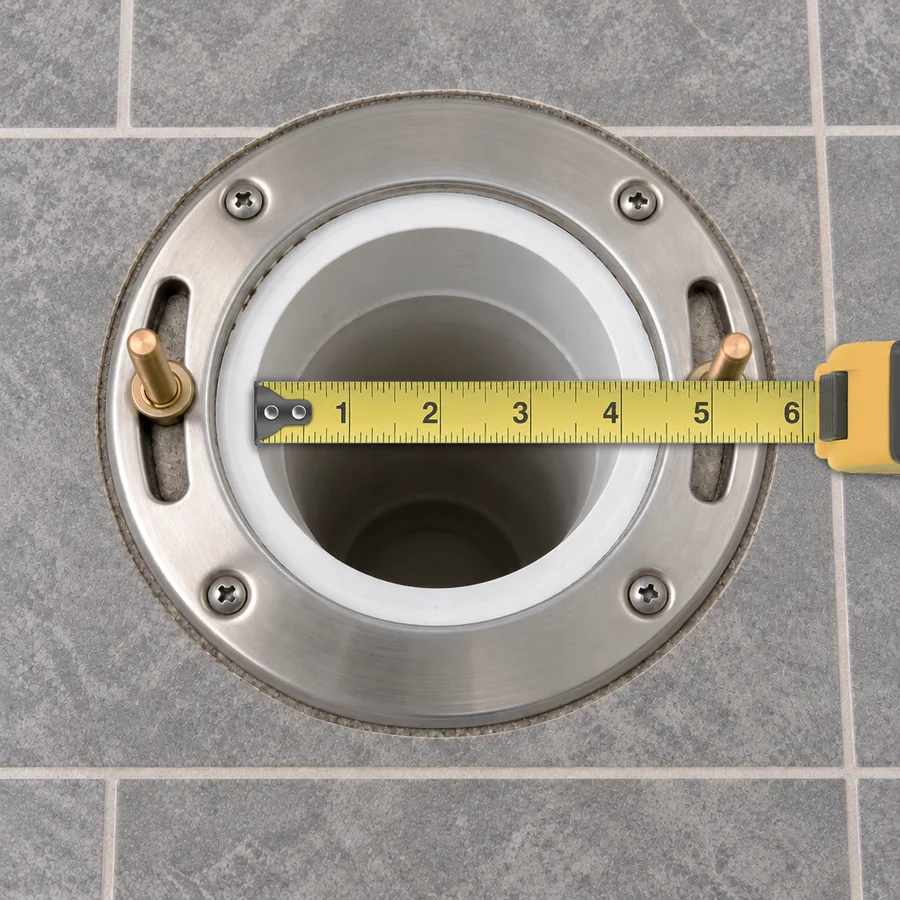

FTS-4 - Designed to seal the toilet to a 4" toilet flange installed on 4" drain pipe. Ideal for most 4" Closet Wall Carriers.

Accessories

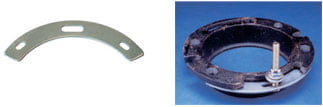

PSF-100 - Spanner Flage eliminates the need to replace broken closet flanges, saving time and money. Simply place the flange under the broken area of the ring and tighten the nut.

Dimensional Drawings

Wax Free Toilet Seal
Drawing

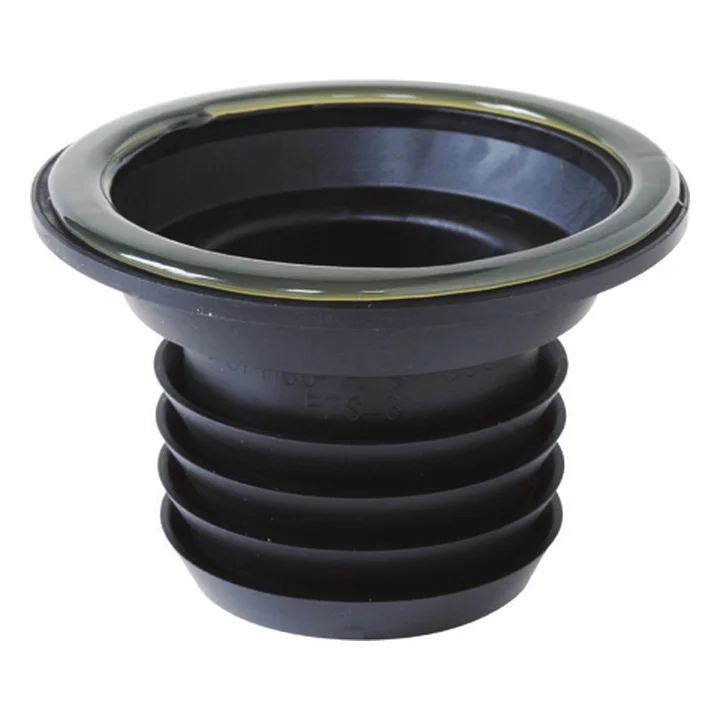

Wax Free Toilet Seal FTS-4CF Drawing Download Codes & Standards
FTS-4 Part Print Download Codes & Standards
FTS-4CF part print Download Codes & Standards
Wax Free Toilet Seal FTS-4 Drawing Codes & Standards
FTS-3 Part Print Download Codes & Standards

Downloads

Flyer/Salesheet | Instructions

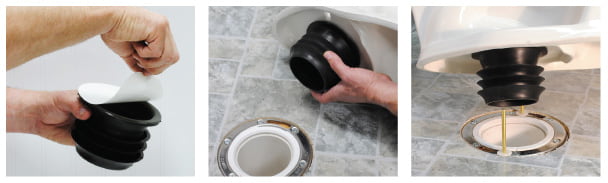

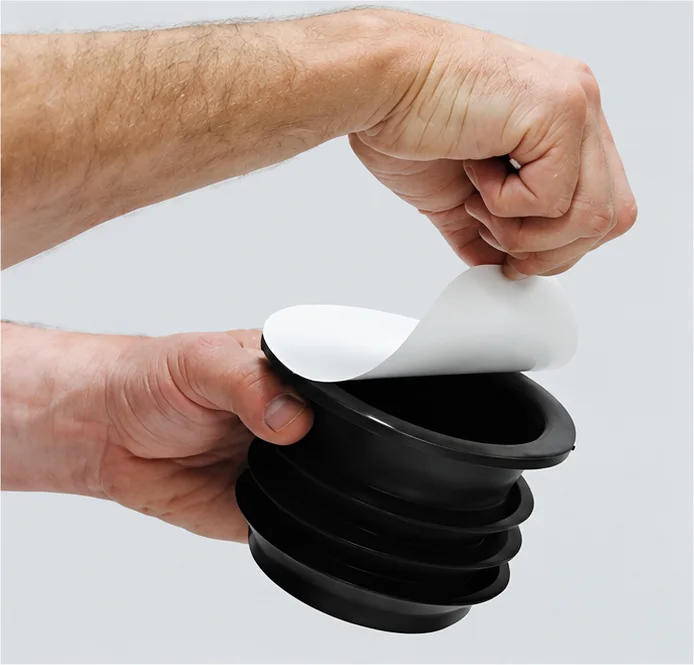

Fernco Wax Free Toilet Seal Installation

Aug 19th 2017 1.85 MB

Download

Flyer/Salesheet

Wax Free Toilet Seal Sales Sheet

Aug 19th 2017 2.44 MB

Download

Testimonials

Wax Free Toilet Seal Manufacturing Engineer Testimonial

Manufacturing Engineer (Retired)

This isn't a question, but a comment on your waxless toilet seals. Those things are EXCELLENT! I'm a DIY remodeler and have set numerous toilets over the years with wax rings. I've always thought that surely someone could come up with something more advanced than a bunch of wax that smooshes down and hopefully seals, at least for a while. well, you guys did a great job with this product.

I'm a retired manufacturing engineer, and I've been around adhesives quite a bit, but whatever that glue is on this product is really something else. I had to pull a toilet that had one of these installed, and I thought for sure that the adhesive would fail before it came out of the pipe, but it didn't! Amazing!
For a few bucks more than the cost of the Neanderthal wax ring, using the Fernco waxless seal is a no-brainer.

Thanks for making an excellent product that really works!
Read more ...
Product: Wax Free Toilet Seal

FTS-4 Wax Free Toilet Seal Testimonial

Recently, I had to re-seat a leaky toilet. When I removed the toilet, I saw that it had two extra deep wax rings as it was previously reseated after tiling the floors and the flange was very deep. Researching online, I came upon your FTS-4 Wax Free toilet seal. Following the instructions, I cleaned around the sealing area and attached the product. I had my doubts. When I was re-installing the toilet, I accidentally dropped it. Needless to say, I am now looking for a new replacement. However, as a test, to see how tightly the seal was attached to the toilet, I tried to pull it off. It took some effort. In fact, the sticky gue came off the rubber but stayed on the toilet. I was really impressed with how well it attached it's self to the toilet. I am looking for a new toilet, but will definitely be picking up another FTS4. Hopefully, I will not drop this one :)

Thanks for creating such a great and mess-free product.
Read more ...
Product: Wax Free Toilet Seal

Wax Free Toilet Seal Proves Reliable

Independent Contractor in St. Louis, MO

I just wanted to take a moment, and remark about one of your products. My name is David Contestabile. I am an independent contractor in the St. Louis, Mo area, and I also rehab. distressed homes. Several years ago, I began using your Wax-Free Toilet Seal, because it allows me to pull and reset a toilet numerous times, without fail, as a bathroom remodel is underway. I have always gone to plumber supply companies, as they weren't available at Lowe's or Home Depot. And since I purchase all of my other supplies at the big hardware stores, it has been somewhat inconvenient, so I buy several at a time. But, I was in Lowe's the other day to grab some toilet rebuild kits, and I saw they are now carrying your product. It's fantastic to see them there. I would like to see if perhaps you could try to get them in Home Depot as well- The design, of this, is virtually fail-safe as it has a 3" neck that extends down into the flange. I never use anything else anymore, and I let everyone I can, know about them (I usually have a few of both 3" & 4" on hand).

I would like to suggest though, that there could be a display box/stand that the stores can position in the aisle, but off... Read more ...
Product: Wax Free Toilet Seal

Another happy customer using Fernco's Wax Free Toilet Seal

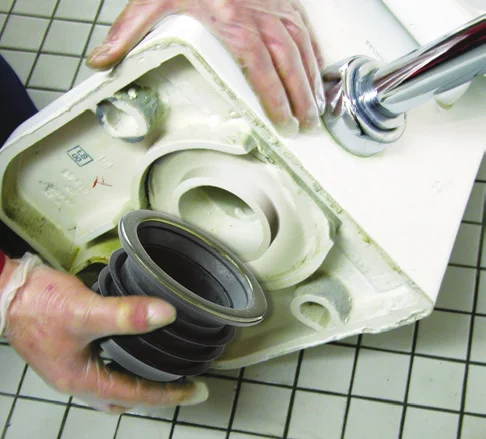

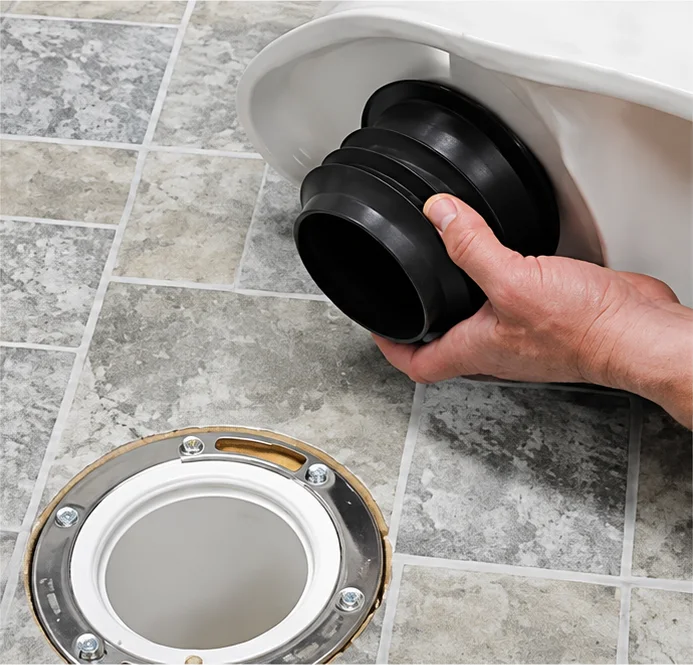

Fernco, Just wanted to give a testimonial. We had talked last summer when I was looking for a source for the FTS-3 toilet seal. What I want to tell you is about the service of the product. In August of 2009 I reinstalled a toilet using the FTS-3. Last week I purchased another toilet as the original had problems. When I removed the original toilet, I had to give it several tugs to get it up. Didn’t know what I would find, but the seal was firmly glued to the horn of the toilet. In fact it was so tight that I could lift the toilet bowl up by the seal. Just wanted you to know that such a simple ( but well made product ) can give such peace of mind. Again, many thanks for your help. I hope the rest of the world gets to experience the quality of Fernco products.
Read more ...
Product: Wax Free Toilet Seal

Wax Free Toilet Seal testimonial by John in Dallas, Texas

I couldn’t believe my eyes when early this morning a FedEx truck delivered the toilet seals we spoke of yesterday afternoon!

I haven’t had a chance to install your product yet – but if it is half as good as your effort to help me – I’m sure my problem will be fixed.

I hope I didn’t sound angry in any of my communications with you. I wasn’t angry at all – just a little frustrated at not being able to find your product stocked locally.

Everyone I spoke to here in the Dallas, Texas area represented your company courteously. Since I am just a “home owner” looking for one seal – they were probably not used to dealing with such a small amount of product.

Your response to my E-mails, however, went way beyond the usual and “required” responses from most customer service departments!!

Thank you so much for helping me. I may not have much influence with those who might use your products (plumbers etc.) but you can be sure that I will share this experience with my friends and acquaintances.

(I do have one friend who is a plumber and is very interested in how this seal works for me).

Again, I can’t say enough about your attitude and... Read more ...
Product: Wax Free Toilet Seal

Wax Free Toilet Seal Testimonial

In August of 2009 I reinstalled a toilet using the FTS-3. Last week I purchased another toilet as the original had problems. When I removed the original toilet, I had to give it several tugs to get it up. Didn't know what I would find, but the seal was firmly glued to the horn of the toilet. In fact it was so tight that I could lift the toilet bowl up by the seal. Just wanted you to know that such a simple ( but well made product ) can give such peace of mind. Again…….many thanks for your help. I hope the rest of the world gets to experience the quality of Fernco products.
Read more ...
Product: Wax Free Toilet Seal

Videos

Wax Free Seals - French

Mar 14, 2016

Products: Wax Free Toilet Seal, Wax Free Urinal Seal

Fernco Wax Free Seal Installation Video

Dec 9, 2011

Take the wax free challenge with Fernco's Wax Free Seals! Applicable for urinals, floor mounts and wall carriers.

Products: Wax Free Toilet Seal

Fernco Wax Free Toilet Seal Video

Dec 9, 2011

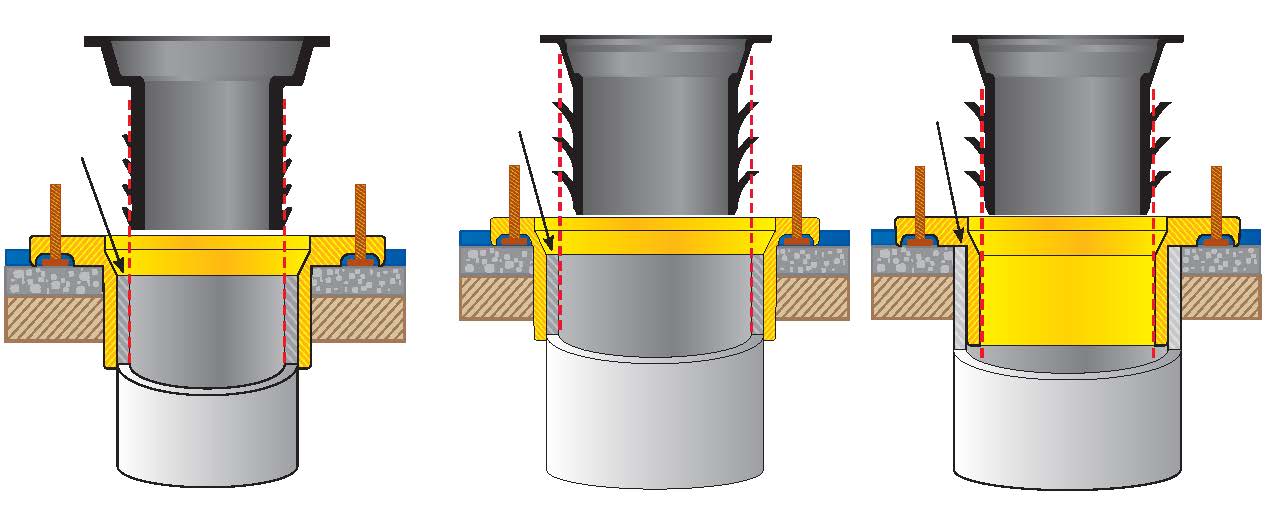

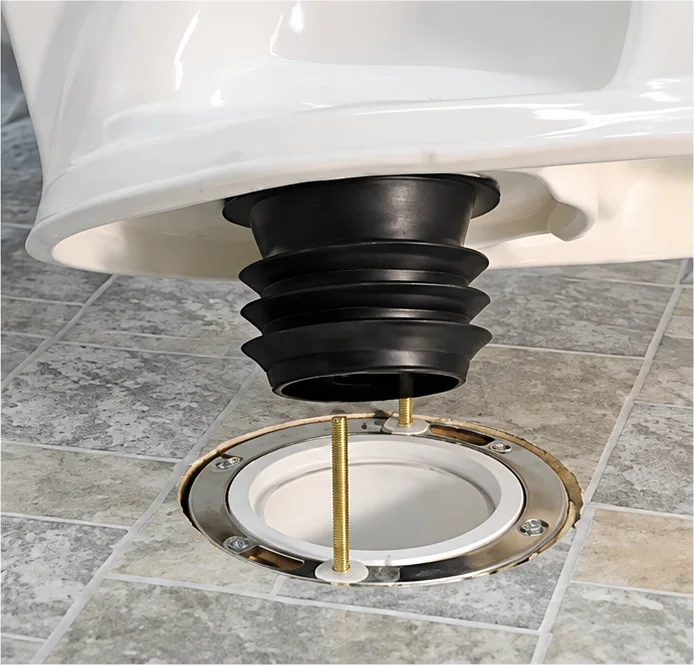

As you lower the toilet onto the flange you can feel the unique sealing rings of the Wax Free Toilet Seal compress and seal against the inside walls of the drain pipe.

Products: Wax Free Toilet Seal
