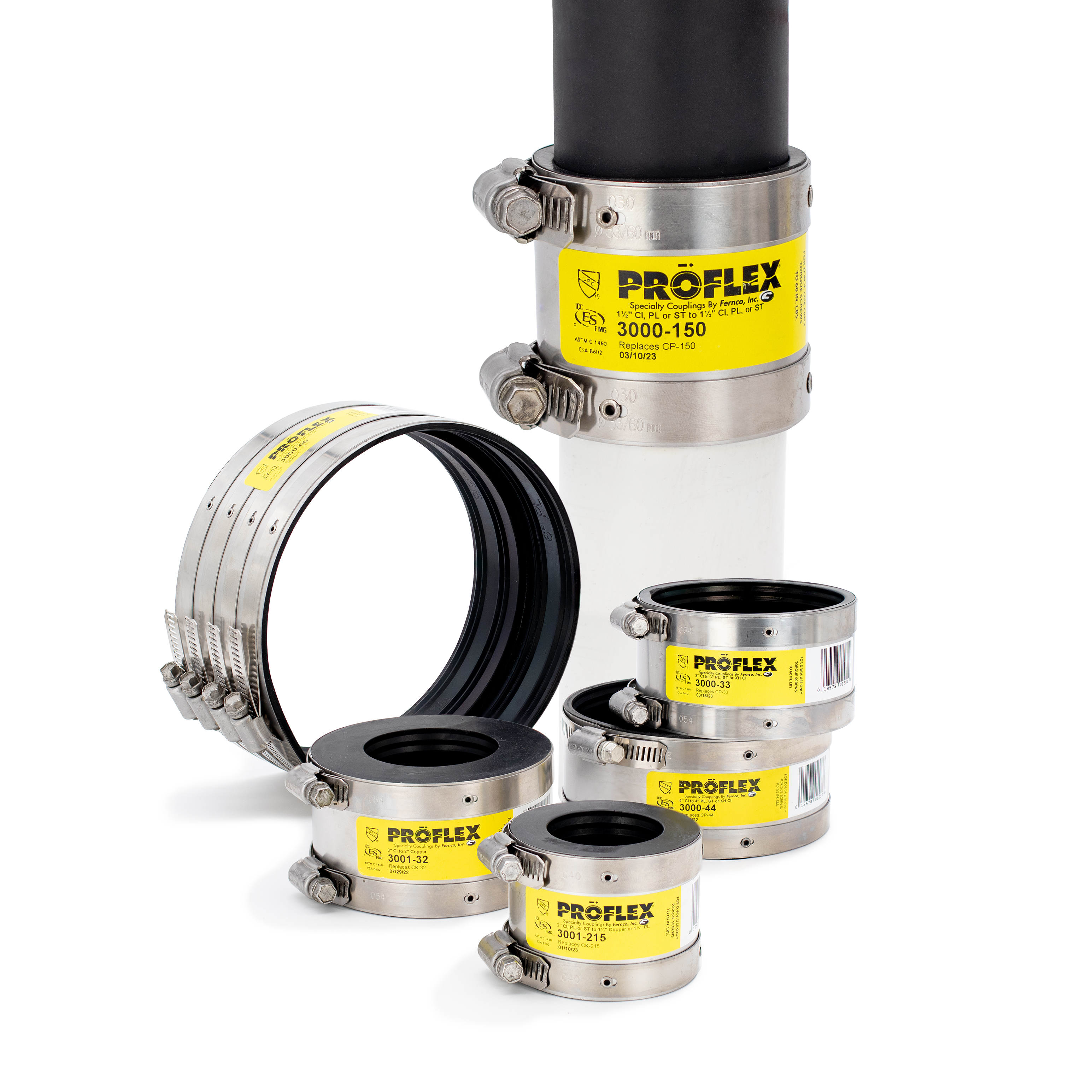

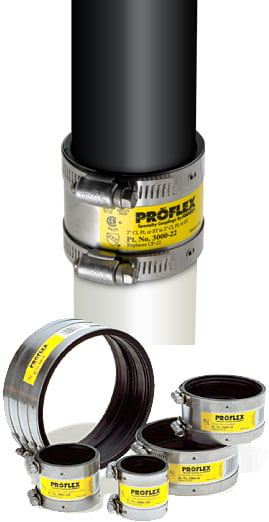

Proflex Couplings

The GO-TO Above-Ground Shielded Transition Pipe Coupling

Proflex is a shielded transition pipe coupling that allows you to make pipe connections that are resistant to shear forces, while creating a rigid, long-lasting pipe joint. From 3/4" to 8" pipe diameters - Proflex connects cast iron, plastic, steel, copper and tubular, drain waste and vent systems for above-ground applications.

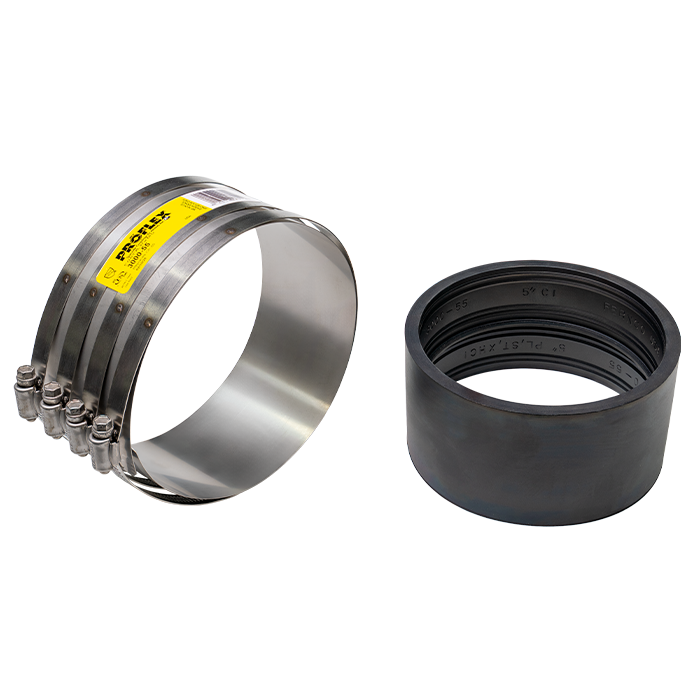

Features

  • .012" stainless steel shield
  • 301 Stainless Steel Clamp Bands

Specifications

  • Gasket Material: Neoprene
  • Gasket ID: Part No. and application on each gasket.
  • Shield assembly material requirements: All 300 series stainless steel
  • Clamp
      • Band = 301 stainless steel .025 x .500 x length
      • Housing = 301 stainless steel - Fernco
      • Screw = 305 stainless steel 5/16" Hex - No Slot
  • Shield - 301 stainless steel .012 x 2.125 x length
  • Eyelet - 305 stainless steel
  • Installation Torque = 60" lbs.
  • Maximum test pressure: 4.3 PSI (29.6KPA)
  • Maximum operating temperature: 180° F
  • Conforms to the requirement of ASTM C1460, ASTM C564 and CSA B602

Proflex Part Numbers

3000 Series - Cast Iron to Plastic, Steel or Extra-Heavy Cast Iron
Part No. Pipe Size and Material (A) Pipe Size and Material (B) Mission Equivalent
3000-150 1.5" Cast Iron, Plastic or Steel 1.5" Cast Iron, Plastic or Steel CP-150

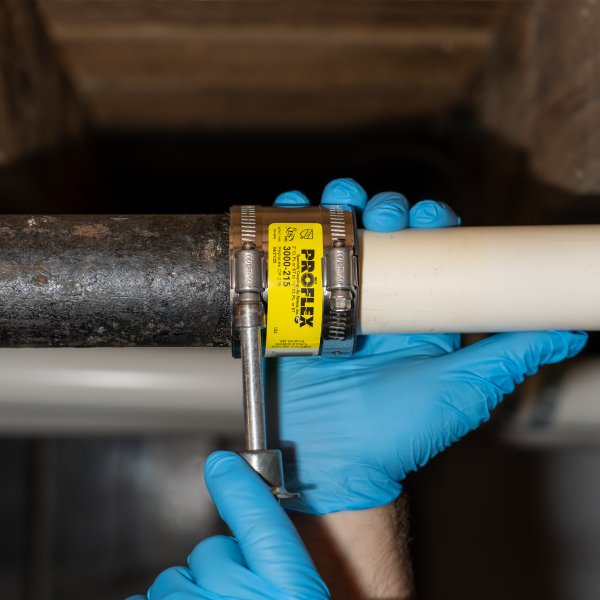

3000-215 2" Cast Iron, Plastic, Steel or Extra-Heavy Cast Iron 1.5" Cast Iron, Plastic or Steel CP-215
3000-22 2" Cast Iron, Plastic, Steel or Extra-Heavy Cast Iron 2" Cast Iron, Plastic, Steel or Extra-Heavy Cast Iron CP-200
3000-33 3" Cast Iron 3" Plastic, Steel or Extra-Heavy Cast Iron CP-33
3000-43 4" Cast Iron 3" Plastic, Steel or Extra-Heavy Cast Iron CP-43
3000-44 4" Cast Iron 4" Plastic, Steel or Extra-Heavy Cast Iron CP-44
3000-55 5" Cast Iron 5" Plastic, Steel or Extra-Heavy Cast Iron CP-55
3000-66 6" Cast Iron 6" Plastic, Steel or Extra-Heavy Cast Iron CP-66
3000-88 8" Cast Iron 8" Plastic, Steel or Extra-Heavy Cast Iron CP-88
3001 Series - Cast Iron to Copper
Part No. Pipe Size and Material (A)  Pipe Size and Material (B) Mission Equivalent
3001-110 1.5" Cast Iron, Plastic or Steel 1" Copper or 3/4" Plastic CK-110
3001-1125 1.5" Cast Iron, Plastic or Steel 1.25" Copper or 1" Plastic CK-1125
3001-150 1.5" Cast Iron, Plastic or Steel 1.5" Copper or 1.25" Plastic CK-115
3001-2125 2" Cast Iron, Plastic or Steel 1.25" Copper or 1" Plastic CK-2125
3001-215 2" Cast Iron, Plastic or Steel 1.5" Copper or 1.25" Plastic CK-215
3001-22 2" Cast Iron, Plastic or Steel 2" Copper CK-22
3001-315 3" Cast Iron 1.5" Copper or 1.25" Plastic CK-315
3001-32 3" Cast Iron 2" Copper CK-32
3001-33 3" Cast Iron 3" Copper CK-33
3001-43 4" Cast Iron 3" Copper CK-43
3001-44 4" Cast Iron 4” Copper CK-44
3002 Series - Cast Iron, Plastic or Steel to Tubular
Part No. Pipe Size and Material (A)  Pipe Size and Material (B) Mission Equivalent
3002-150 1.5" Cast Iron, Plastic or Steel 1.5" Tubular T-150
3002-155 1.5" Tubular 1.5" Tubular T-215
3002-215 2" Cast Iron, Plastic or Steel 1.5" Tubular BWT-150
3003 Series - Copper to Copper
Part No. Pipe Size and Material (A)  Pipe Size and Material (B) Mission Equivalent
3003-150 1.5" Copper 1.5" Copper or 1.25" Plastic K-150
3003-215 2" Copper 1.5" Copper or 1.25" Plastic K-200
3003-22 2" Copper 2" Copper K-215
3003-33 3" Copper 3" Copper K-300
3004 Series - Cast Iron to Cast Iron, Plastic or Steel
Part No. Pipe Size and Material (A)  Pipe Size and Material (B) Mission Equivalent
3004-320 3" Cast Iron 2" Cast Iron, Plastic or Steel C-320
3004-420 4" Cast Iron 2" Cast Iron, Plastic or Steel C-420
3004-430 4" Cast Iron 3" Cast Iron C-430
3004-540 5" Cast Iron 4" Cast Iron C-540
3005 Series - Plastic, Steel or Extra-Heavy Cast Iron to Plastic, Steel or Extra-Heavy Cast Iron
Part No. Pipe Size and Material (A)  Pipe Size and Material (B) Mission Equivalent
3005-33 3" Plastic, Steel or Extra-Heavy Cast Iron 3" Plastic, Steel or Extra-Heavy Cast Iron P-300
3005-43 4" Plastic, Steel or Extra-Heavy Cast Iron 3" Plastic, Steel or Extra-Heavy Cast Iron P-430
3005-44 4" Plastic, Steel or Extra-Heavy Cast Iron 4" Plastic, Steel or Extra-Heavy Cast Iron P-400
3005-66 6" Plastic, Steel or Extra-Heavy Cast Iron 6" Plastic, Steel or Extra-Heavy Cast Iron P-600
3006 Series - Copper to Cast Iron, Plastic or Steel
Part No. Pipe Size and Material (A)  Pipe Size and Material (B) Mission Equivalent
3006-215 2" Copper 1.5" Cast Iron, Plastic or Steel KC-215
3006-32 3" Copper 2" Cast Iron, Plastic or Steel KC-32
3006-43 4" Copper 3" Cast Iron KC-43
3007 Series - Plastic, Steel or Extra Heavy Cast Iron to Copper
Part No. Pipe Size and Material (A)  Pipe Size and Material (B) Mission Equivalent
3007-32 3" Plastic, Steel or Extra-Heavy Cast Iron 2" Copper PK-32
3007-33 3" Plastic, Steel or Extra-Heavy Cast Iron 3" Copper PK-33
3007-43 4" Plastic, Steel or Extra-Heavy Cast Iron 3" Copper PK-43
3007-44 4" Plastic, Steel or Extra-Heavy Cast Iron 4" Copper PK-44
3008 Series - Plastic, Steel or Extra-Heavy Cast Iron to Cast Iron, Plastic or Steel
Part No. Pipe Size and Material (A)  Pipe Size and Material (B) Mission Equivalent
3008-32 3" Plastic, Steel or Extra-Heavy Cast Iron 2" Cast Iron, Plastic or Steel PC-32
3009 Series - Thinwall Plastic to Sch. 40 Plastic
Part No. Pipe Size and Material (A)  Pipe Size and Material (B) Mission Equivalent
3009-33 3" Thinwall Plastic 3" Sch. 40 Plastic TWP-33
3009-44 4" Thinwall Plastic 4" Sch. 40 Plastic TWP-44
3010 Series - Copper to Tubular
Part No. Pipe Size and Material (A)  Pipe Size and Material (B) Mission Equivalent
3010-150 1.5" Copper 1.5" Tubular KT-150
3010-215 2" Copper 1.5" Tubular KT-215
