No Hub Couplings
No-Hub Couplings
Engineered to connect no-hub cast iron pipe.
The No-Hub Coupling has a patented shield design that provides maximum transfer of pressure from the clamps to the gasket and pipe. Engineered to connect no-hub cast iron pipe in applications, replacing the less-efficient hub and spigot.
Features

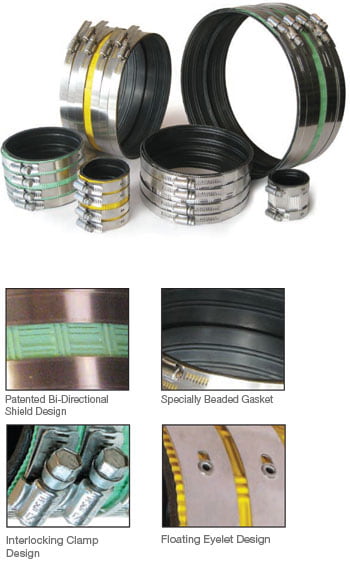

- Patented Bi-Directional Shield Design
The shield adjusts to a variety of a pipes diameters and circumferences--eliminating leak paths. The patented, bi-directional corrugation shield seals pressure in both parallel and transverse patterns on the gasket and pipe to provide a positive, reliable seal. - Connects Cast Iron Pipe to Cast Iron Pipe
Fernco no hub couplings offer long-lasting performance and the preferred way to connecting cast iron pipes together without the need for a traditional hub and spigot joint. - Specially Beaded Gasket
Meeting the requirements of ASTM C564, the beaded gasket consists of an elastomeric compound with strategically positioned grooves and beads. When tightened, the shield attaches to the grooves to provide exceptional sealing pressure and holding power. - Interlocking Clamp Design
The clamps feature a one-piece screw housing that mechanically interlocks to the band. This design eliminates leak paths that can occur in staked or welded clamps. - Floating Eyelet Design
Fastenting the clampes to the shield, the floating eyelets allow the clamp, band and shield to move independently. This freedom prevents the shield from crimping and future leakage..
Specifications
Standard No-Hub

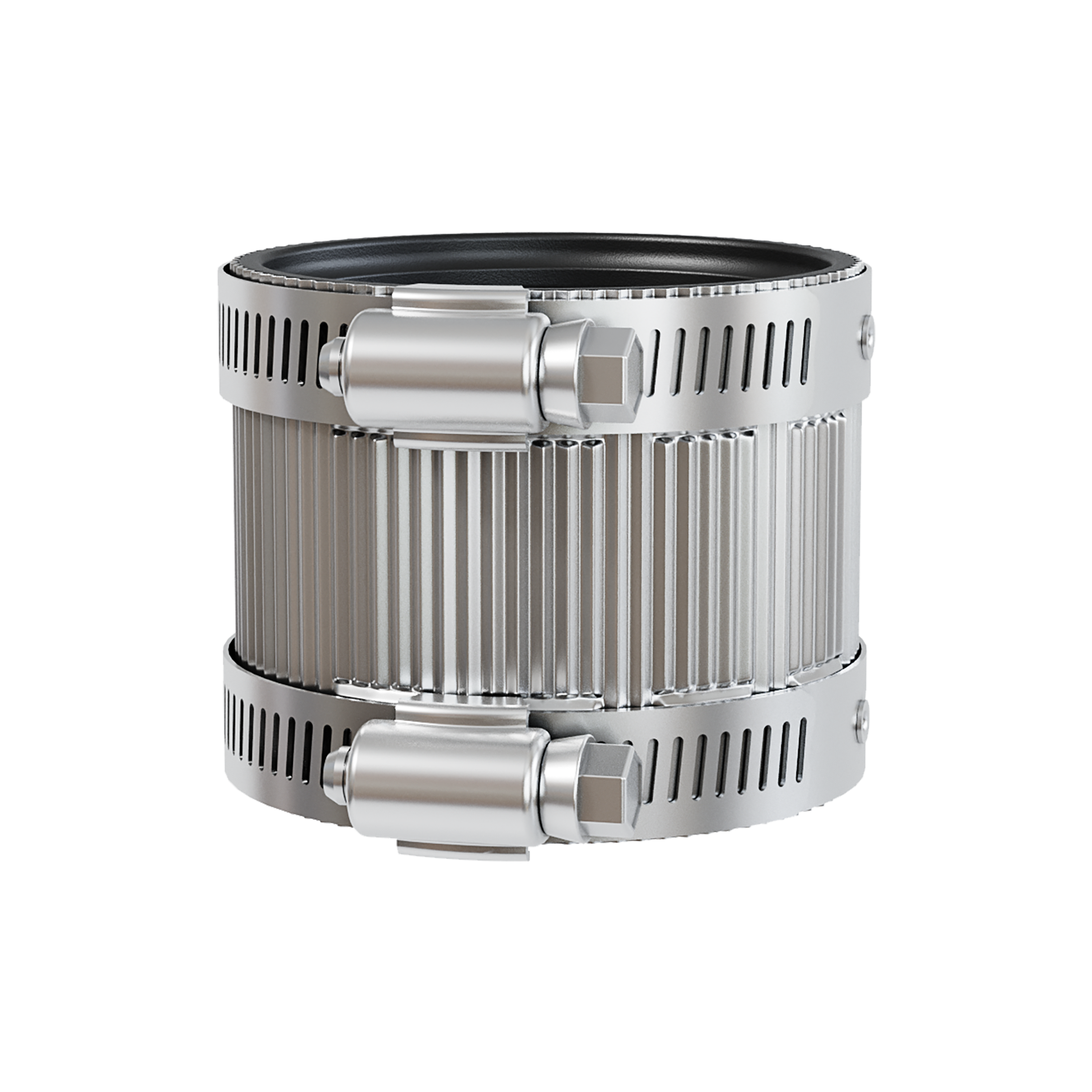

- 5/16" hex-head screw applies 60 in.-lbs. of installation torque to the band/shield assembly.
- Standard No-Hub Couplings conform to CISPI 310. Couplings comply with ASTM C 1277. Gaskets are made from an elastomeric compound that meets the requirements of ASTM C 564.
Medium Duty No-Hub

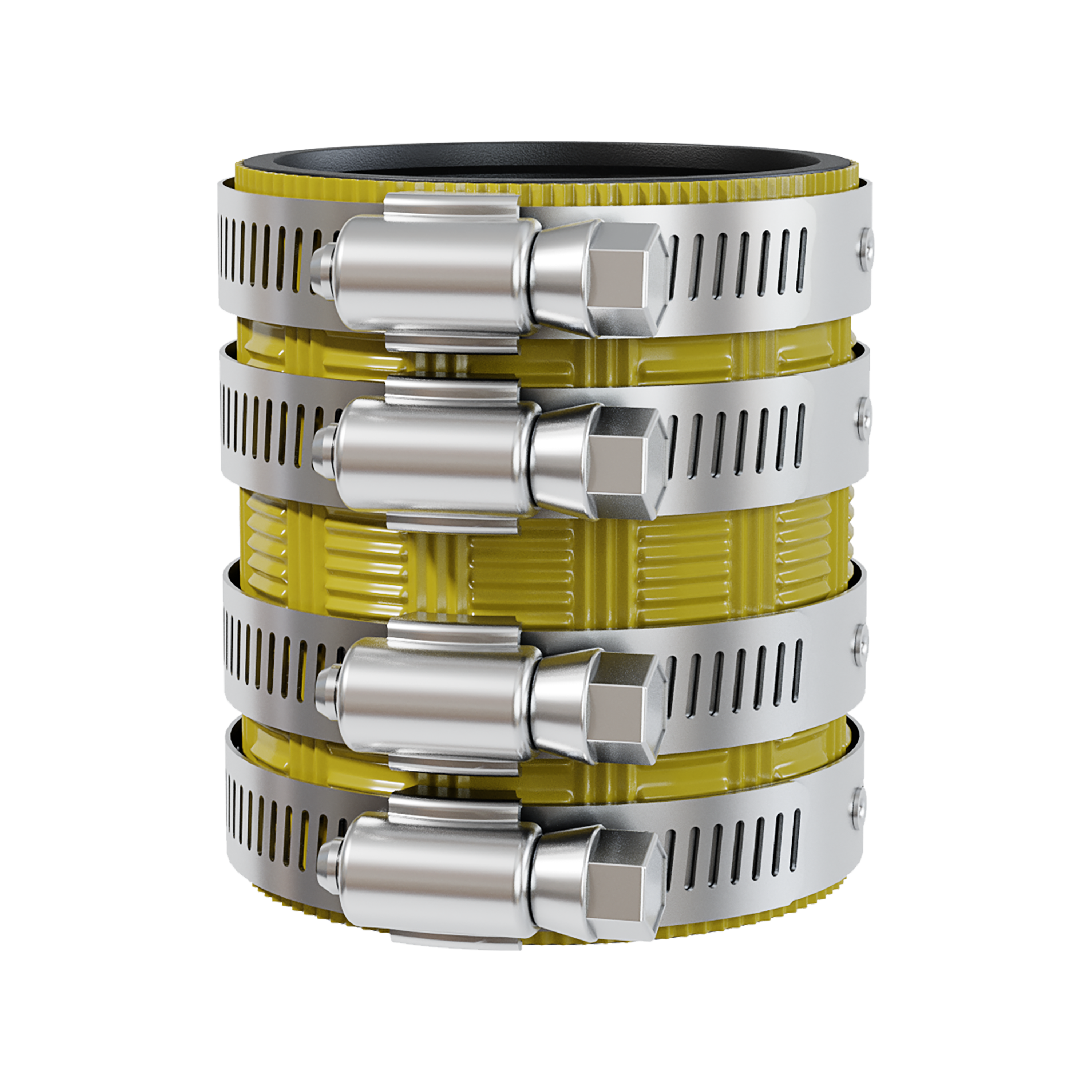

- The distinctive yellow shield quickly identifies the Heavy-Duty MD Couplings and makes it easier for inspectors. 5/16" hex-head screw applies 80 in.-lbs. of installation torque to the band/shield assembly.
- Couplings conform to CISPI 310, Factory Mutual CN 1680. Couplings comply with ASTM C564, ASTM C1540, IAPMO file #3198, Commonwealth of Massachusetts CMR-248 and City of New York MEA 253-98-E. Gaskets are made from an elastomeric compound that meets the requirements of ASTM C564.
Heavy Duty No-Hub

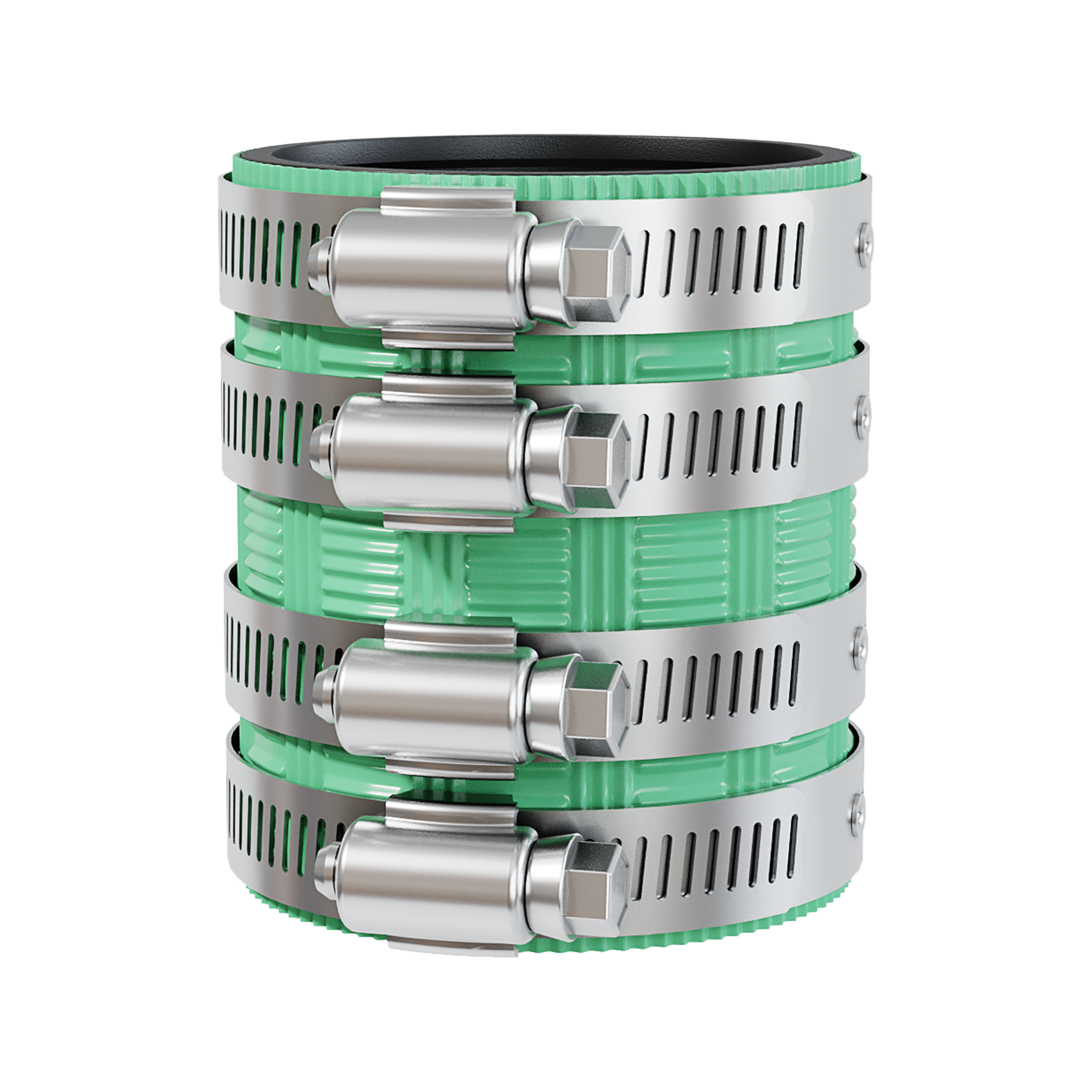

- The distinctive green shield quickly identifies the Heavy-Duty HD Couplings and makes it easier for inspectors. 3/8" hex-head screw applies 80 in.-lbs. of installation torque to the band/shield assembly. Boasts an ultimate torque rating exceeding 100 in.-lbs. and heavier gauge stainless steel.
- Couplings conform to CISPI 310, Factory Mutual EN 1680. Couplings comply with ASTM C564, ASTM C1540, IAPMO file #3198, Commonwealth of Massachusetts CMR-248 and City of New York MEA 253-98-E. Gaskets are made from an elastomeric compound that meets the requirements of ASTM C564
- Maximum test pressure: 4.3 PSI (29.6KPA)
Models
| Part No. | Size | Clamps Per Coupling | Install Torque (Inch Pounds) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Standard Duty N0-Hub | |||||||||
| NH-150 | 1-1/2" | 2 | 60 | ||||||
| NH-22 | 2" | 2 | 60 | ||||||
| NH-33 | 3" | 2 | 60 | ||||||
| NH-44 | 4" | 2 | 60 | ||||||
| NH-55 | 5" | 4 | 60 | ||||||
| NH-66 | 6" | 4 | 60 | ||||||
| NH-88 | 8" | 4 | 60 | ||||||
| NH-1010 | 10" | 4 | 60 | ||||||
| NH-1212 | 12" | 6 | 120 | ||||||
| NH-1515 | 15" | 6 | 120 | ||||||
| Reducing Size No-Hub | |||||||||
| NH-215 | 2"x1-1/2" | 2 | 60 | ||||||
| NH-32 | 3"x2" | 2 | 60 | ||||||
| NH-42 | 4"x2" | 2 | 60 | ||||||
| NH-43 | 4"x3" | 2 | 60 | ||||||
| Medium Duty No-Hub | |||||||||
| MD-150 | 1-1/2" | 4 | 80 | ||||||
| MD-22 | 2" | 4 | 80 | ||||||
| MD-33 | 3" | 4 | 80 | ||||||
| MD-44 | 4" | 4 | 80 | ||||||
| MD-55 | 5" | 6 | 80 | ||||||
| MD-66 | 6" | 6 | 80 | ||||||
| MD-88 | 8" | 6 | 80 | ||||||
| MD-1010 | 10" | 6 | 80 | ||||||
| HD-150 | 1-1/2" | 4 | 80 | ||||||
| Heavy Duty No-Hub | |||||||||
| HD-22 | 2" | 4 | 80 | ||||||
| HD-33 | 3" | 4 | 80 | ||||||
| HD-44 | 4" | 4 | 80 | ||||||
| HD-55 | 5" | 6 | 80 | ||||||
| HD-66 | 6" | 6 | 80 | ||||||
| HD-88 | 8" | 6 | 80 | ||||||
| HD-1010 | 10" | 6 | 80 | ||||||
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
