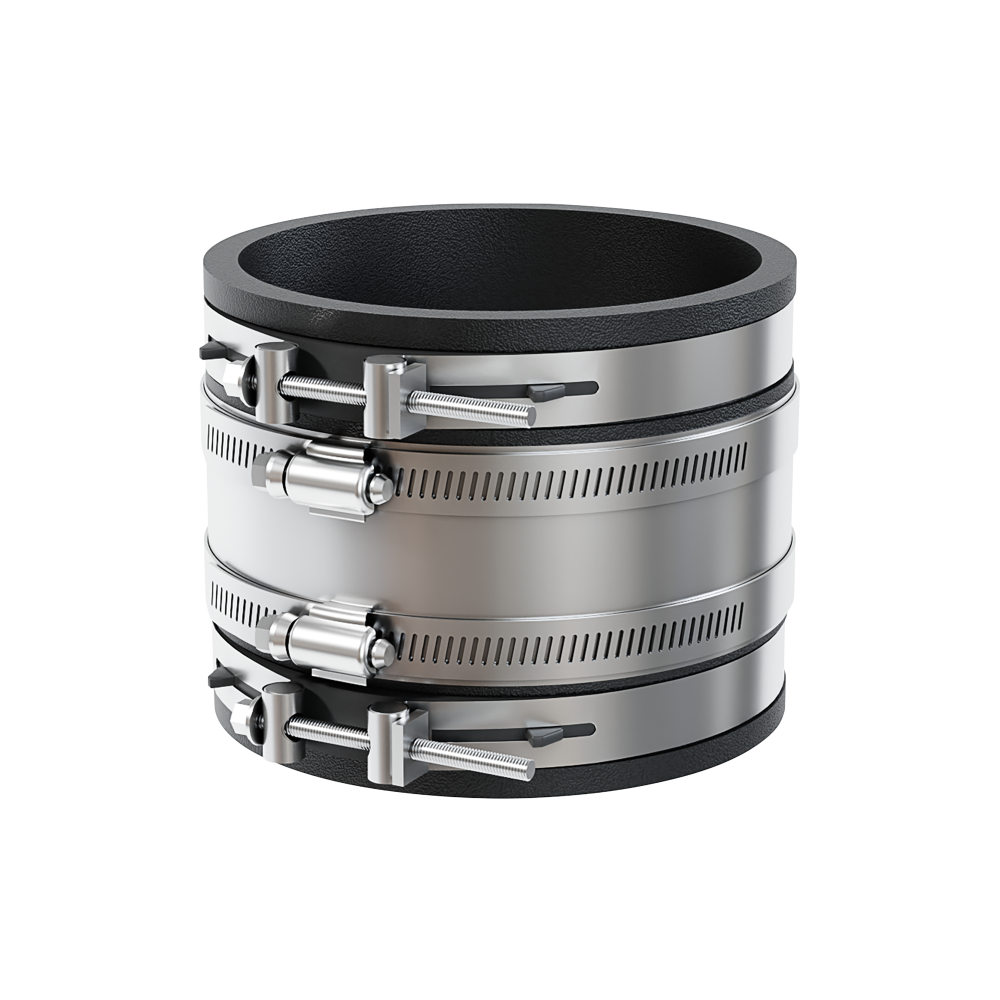

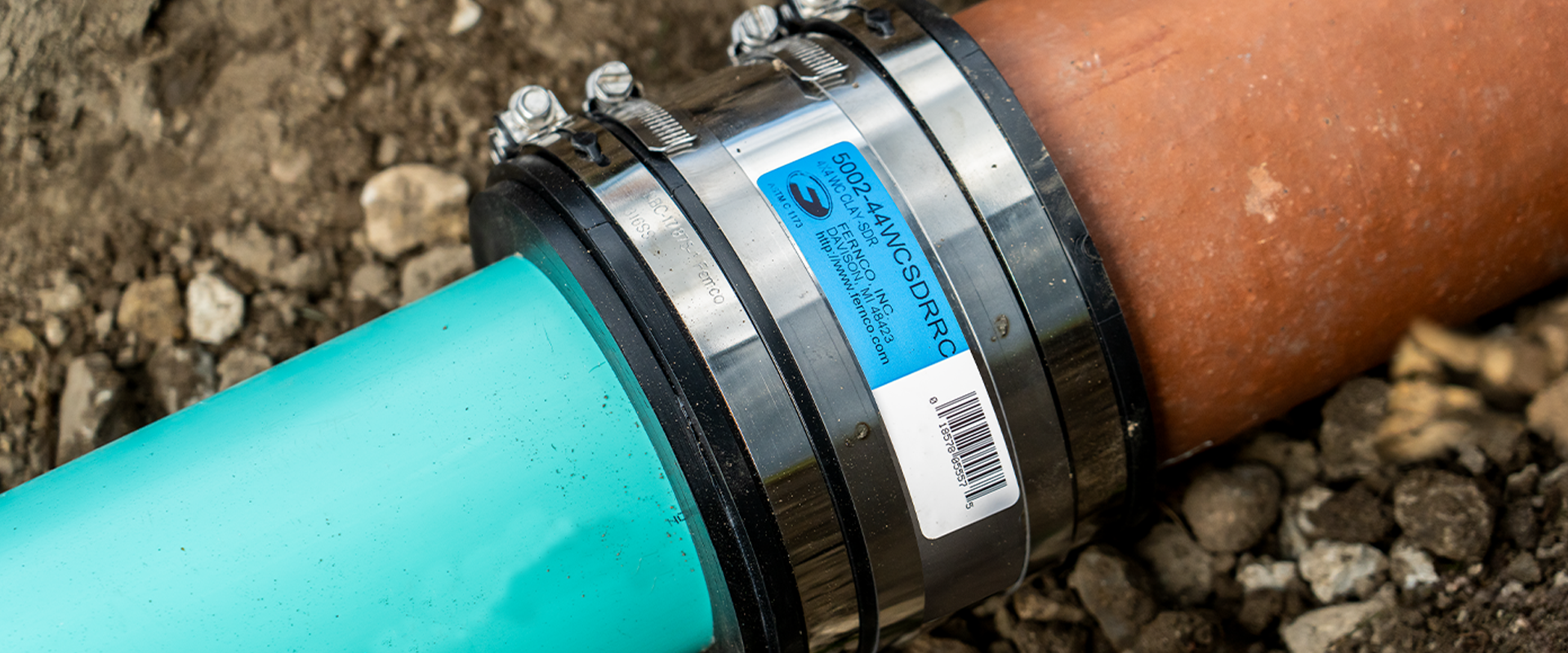

Strong Back RC 5000 Series Couplings

5000 Series RC Couplings 5000 Series RC Couplings Details
ICC ES PMG
UPC

Designed for resistance to heavy earth loads and shear forces, while providing improved pipe alignment.

Features

  • 5000 Strong Back RC Couplings offer a .012" stainless steel shield and a molded in bushing
  • 316 Stainless Steel Clamp Bands

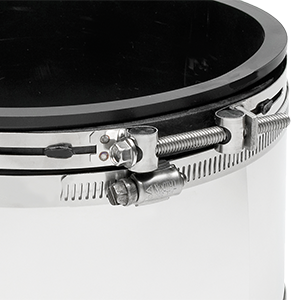

  • 6" and larger couplings incorporate two nut and bolt take-up points per band

Specifications

Gasket

  • Manufactured to meet the material requirements of:
    • CSA B602 - mechanical couplings for drain, waste, vent pipe and sewer pipe
    • ASTM D 5926 - Standard specification for poly vinyl chloride (PVC) gaskets for drain, waste, and vent (DWV), sewer, sanitary and storm plumbing systems
    • ASTM C 1173 - Standard specification for flexible transition couplings for underground piping systems
  • Hardness, Shore"A", Inst. -+5......................65
  • Tensile Strength, Min. psi ..........................1000
  • Elongation at Rupture, Min. %..................250
  • Tear Strength, Min......................................... 150 lb/in.
  • Brittleness Temperature.............................. -40°F

Clamps

  • Clamp Band - 316 Stainless Steel
  • 6" and larger couplings incorporate two nut and bolt take-up points per band
  • Installation torque 60" lbs

Shear Ring

  • .012" Thick, 300 Series Stainless Steel
  • Width manufactured according to coupling width (1.50", 2.13", or 4")
  • Length manufactured according to coupling diameter
  • Clamps spot welded in place

Coupling

  • Manufactured to conform to the performance requirements of:
    • ASTM C 1173 - standard specification for flexible transition couplings for underground piping systems
    • CSA B602 - mechanical couplings for drain, waste, vent pipe and sewer pipe
  • Maximum test pressure: 4.3 PSI (29.6KPA)
  • Maximum operating temperature: 140° F non-consistent

Models

Connecting 5001RC Series - Clay to Clay
Part No. Side A Side B Width C
  inches mm inches mm inches mm
5001-44RC 5.29 134.37 5.29 134.37 4.10 104.14
5001-44WCRC 5.51 139.95 5.51 139.95 3.97 100.84
<5001-66RC 7.50 190.50 7.50 190.50 6.02 152.91
5001-66WCRC 8.01 203.45 8.01 203.45 6.00 152.40
5001-88RC 9.65 245.11 9.65 245.11 5.99 152.15
5001-88WCRC 10.00 254.00 10.00 254.00 6.00 152.40
>5001-1010RC 12.40 314.96 12.40 314.96 5.90 149.86
5001-1010WCRC 12.40 314.96 12.40 314.96 5.90 149.86
* Supplied with reducer.
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F nonconsistent
Connecting 5002RC Series - Clay to Cast Iron or Plastic
Part No. Side A Side B Width C
  inches mm inches mm inches mm
5002-44RC 5.36 136.14 4.51 114.55 4.07 103.38
5002-44WCRC 5.44 138.18 4.55 115.57 3.96 100.58
5002-64RC * 7.50 190.50 4.50 114.30 6.02 152.91
5002-64WCRC * 8.00 203.20 4.50 114.30 6.00 152.40
5002-66RC 7.50 190.50 6.56 166.65 5.89 149.68
5002-66WCRC 8.04 204.10 6.38 162.14 5.91 150.01
5002-88RC 9.76 247.95 8.57 217.63 5.96 151.38
5002-88WCRC 10.00 254.00 8.66 219.96 6.00 152.40
5002-1010RC * 12.40 314.96 10.75 273.05 5.90 149.86
5002-1212RC * 14.51 368.55 12.60 320.04 6.38 162.05
5002-1515RC * 18.14 460.76 15.40 391.16 9.89 251.21
5002-1818RC * 21.90 556.26 19.00 482.60 9.63 244.60
* Supplied with reducer.
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F nonconsistent
Connecting 5003RC Series - Clay to Ductile Iron
Part No. Side A Side B Width C
  inches mm inches mm inches mm
5003-44RC 5.41 137.41 4.94 125.48 4.07 103.38
5003-66RC 7.25 184.15 6.84 173.74 5.93 150.62
* Supplied with reducer.
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F non-consistent
Connecting 5004RC Series - Concrete to Concrete
Part No. Side A Side B Width C
  inches mm inches mm inches mm
5004-44RC 5.51 139.95 5.51 139.95 3.97 100.84
5004-66RC 7.58 192.53 7.58 192.53 5.94 150.88
5004-88RC 10.38 263.65 10.38 263.65 5.90 149.86
5004-1010RC 12.40 314.96 12.40 314.96 5.90 149.86
5004-1212RC 15.25 387.35 15.25 387.35 6.42 163.07
* Supplied with reducer.
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F non-consistent
Connecting 5006RC Series - Concrete to Cast Iron or Plastic
Part No. Side A Side B Width C
  inches mm inches mm inches mm
<5006-44RC * 5.51 139.95 4.50 114.30 3.97 100.84
5006-66RC * 7.58 192.53 6.63 168.28 5.94 150.88
5006-88RC * 10.38 263.65 8.50 215.90 5.90 149.86
5006-1010RC * 12.40 314.96 10.75 273.05 5.90 149.86
5006-1212RC * 15.25 387.35 12.60 320.04 6.42 163.07
* Supplied with reducer.
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F nonconsistent
Connecting 5051RC Series - Ductile Iron to Cast Iron or Plastic
Part No. Side A Side B Width C
  inches mm inches mm inches mm
5051-44RC 4.80 121.92 4.39 111.51 3.94 100.08
5051-46RC * 6.60 167.64 4.75 120.65 5.74 145.80
5051-64RC * 6.95 176.53 4.38 111.25 5.92 150.37
5051-66RC 6.96 176.78 6.69 169.80 5.91 150.11
5051-88RC 9.25 234.95 8.51 216.15 5.97 151.64
5051-1010RC 11.02 279.78 10.52 267.13 5.85 148.46
* Supplied with reducer.
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F nonconsistent
Connecting 5055RC Series - Ductile Iron to Ductile Iron
Part No. Side A Side B Width C
  inches mm inches mm inches mm
5055-44RC 4.75 120.65 4.75 120.65 3.96 100.58
5055-66RC 6.65 168.91 6.65 168.91 5.92 150.37
5055-88RC 9.05 229.87 9.05 229.87 5.98 151.89
* Supplied with reducer.
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F nonconsistent
Connecting 5056RC Series - CI, PL, ST or Lead to CI, PL, ST or Lead
Part No. Side A Side B Width C
  inches mm inches mm inches mm
5056-43RC * 4.58 116.33 3.38 85.85 4.02 102.11
5056-44RC 4.58 116.33 4.58 116.33 4.02 102.11
5056-64RC * 6.60 167.64 4.50 114.30 5.74 145.80
5056-66RC 6.60 167.64 6.60 167.64 5.74 145.80
5056-88RC 8.64 219.46 8.64 219.46 6.04 153.42
5056-1010RC 10.63 270.00 10.63 270.00 5.89 149.61
5056-1212RC 12.52 318.01 12.52 318.01 6.32 160.53
5056-1515RC 15.44 392.18 15.44 392.18 9.89 251.21
5056-1818RC 19.00 482.60 19.00 482.60 9.89 251.21
5056-2424RC * 25.10 637.54 25.10 637.54 9.89 251.21
* Supplied with reducer.
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F nonconsistent
