Stainless Steel Shear Rings

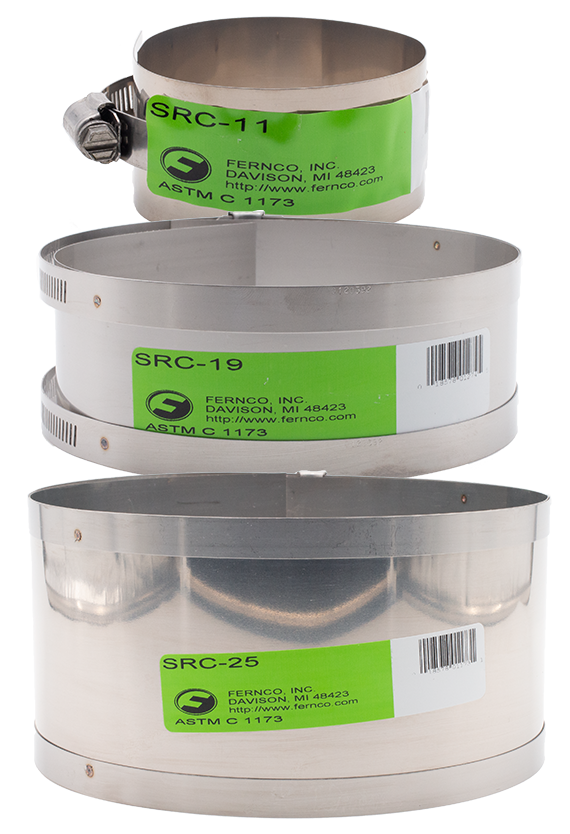

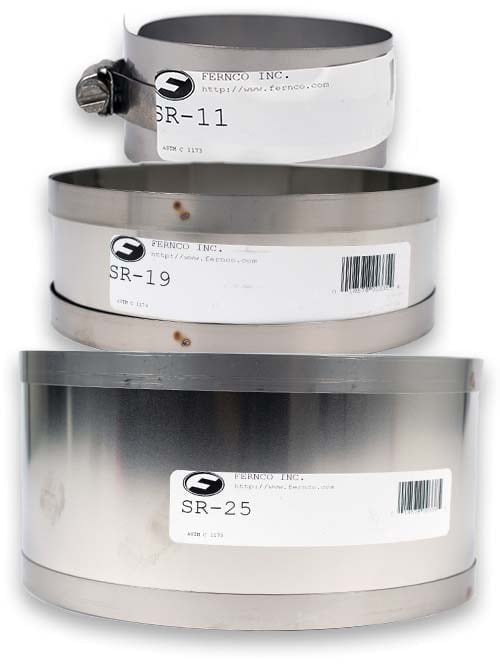

Sheer Rings - Sr-11, SR-19, SR-25

Stainless Steel Shear Rings

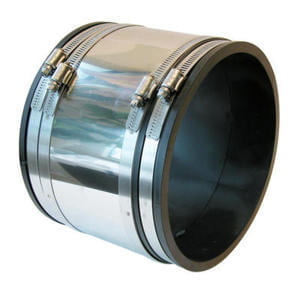

Add extra strength to just about any Fernco coupling.

Fernco’s stainless steel shear rings help maintain proper alignment even in the most unstable ground conditions with a simple installation. Bushings are supplied separately for material transition and size reduction.

Features

  • Designed to fit:
    • 1001 - Clay to Clay
    • 1055 - AC to AC
    • 1004 - Concrete to Concrete
    • 1056 - Cl/Plastic to Cl/Plastic
  • Available in sizes 1-1/2" to 15" couplings. Custom sizes are available.

Specifications

  • Series 300 stainless steel bands, nuts and housings
  • Maximum test pressure: 4.3 PSI (29.6KPA)
  • Maximum operating temperature: 140° F nonconsistent

Models

Part No. Fits Fernco Coupling No. Length Width Band Size
SR-9 1056-150 9” 1.5” 32
SR-11 1056-22 11” 1.5” 44
SR-15 1056-33 15” 2” 64
SR-19 1056-44, 1055-44 19” 2” 88
SR-22 1001-44, 1004-44, 1056-55 22” 2” 96
SR-25 1056-66 25” 4” 116
SR-27 1001-66, 1055-66 27” 4” 128
SR-28 1004-66 28” 4” 140
SR-33 1056-88 33” 4” 152
SR-35 1001-88, 1055-88 35” 4” 164
SR-37 1004-88 37” 4” 184
SR-39 1055-1010, 1056-1010 39” 4” 184
SR-46 1001-1010, 1004-1010, 1051-1212, 1055-1212, 1056-1212 46” 4” (2) 116
SR-54 1001-1212, 1004-1212 54” 4” (2) 128
SR-56 1056-1515 56" 4"
SR-59 1001-1515 59” 4” (2) 152
SR-63 1056-1818 63” 4” 164 & 152
SR-73 1056-2121 73” 4” (2) 184
* Supplied with reducer.
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F nonconsistent

Accessories

  • 5/16" Ratchet Torque Wrench - TW100
    Built-in reversing lever is preset to 60" lbs. torque. Recommended for Fernco Couplings and other banded Fernco products. Chrome plated shank with metal construction.
  • 5/16" Ratchet Torque Wrench - TW200
    With finger grip reversing collar that is preset to 60” lbs. torque. Recommended for Fernco Couplings and other banded Fernco products. Chrome plated shank with metal construction.
